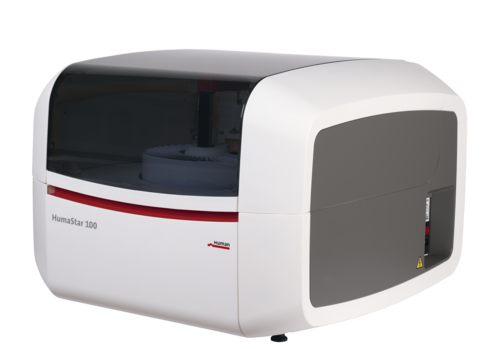

HumaStar 100

Name: HumaStar 100
Brand: HUMAN Diagnostics Worldwide
SKU: 16890
Availability: InStock

CoreLab DXClinical ChemistryInstrumentsAnalyzers

Price per unit:

XXX,XX €

Get a consultation

Random access clinical chemistry analyzer

The perfect choice for aspiring labs HumaStar 100 is the first choice for laboratories processing up to 500 measurements / shift. Its ease of use exceeds those of most other instruments. Furthermore the instrument has been awarded with the international iF product design award and German Design Award. Continuous sample loading and STAT processing at any time makes the HumaStar 100 a perfect match for small routine or emergency laboratories. The extraordinary low water consumption of less than 1l/h grants autonomy from water supply units. Validated applications for HUMAN multipurpose and most immunoturbidimetric reagents are preprogrammed on the instrument.

Download presentation PDF

Throughput: 100 tests/h

Constantly 100 tests/hour, the perfect match for small routine or emergency laboratories

Sample positions: 60

Positions for primary tubes up to 16 x 100 mm and sample cups

Reagent positions: 30

Cooled positions for 20 ml and 50 ml bottles. Reagent cooling independent from main power switch

Comprehensive assay selection “Made in Germany”

Validated applications for most HUMAN multipurpose reagents are preprogrammed

8-step cuvette wash station

with method defined washing programms

Low water consumption

The low water consumption of less than 1l/h grants autonomy from water supply units

Intuitive and powerful software

Designed for intuitive touchscreen interaction

Multi-language

Software in English, Spanish, French. Additional languages can be added

Efficient data management with bi-directional LIS

Easy integration into laboratory information system with flexible connectivity options

Easy and efficient operation

Automated pre- and post-dilution processes
Eco-friendly, minimal water and energy consumption
Low maintenance requirements
Versatile sample handling, choice of three different removale sample trays
Accommodates Primary tubes up to 16 x 100 mm
and sample cups
Convenient reagent management with removable reagent tray and choice of 50 ml or 20 ml reagent bottles

Safety first - Smart system monitoring

Intelligent flagging system with extensive error logging
Lifecycle counter for components with maintenance alerts ensuring consistent performance
Routine checks and individual cuvette blanking
Programmable validity limits for methods and reactions
Reagent Integrity Check
Uninterruptible Power Supply (UPS) 230V
included in standard delivery

Broad assay panel "Made in Germany"

HumaStar automated analyzers are designed for optimal compatibility with HUMAN reagents
Ensures highest quality results
with fully validated assay settings
Meets various throughput needs with different kit sizes

Intuitive and powerful software

Smart graphical user interface
for convenient operation
Method and reagent monitoring
(volumes, available tests, calibration, QC status)
Programmable automatic start up routine
and multiple work lists
Free choice of execution order
Provides easy access to information
through a searchable results database
Results archive with cumulative charts

Techspecs

Analyzer type

Automated clinical chemistry analyzer

Reagent system

Open - HUMAN multipurpose reagents

Throughput (max.)

100 tests/hr maximum
100 tests/hr typical

Operation modes

Random access, Batch, STAT

Reaction / reading system

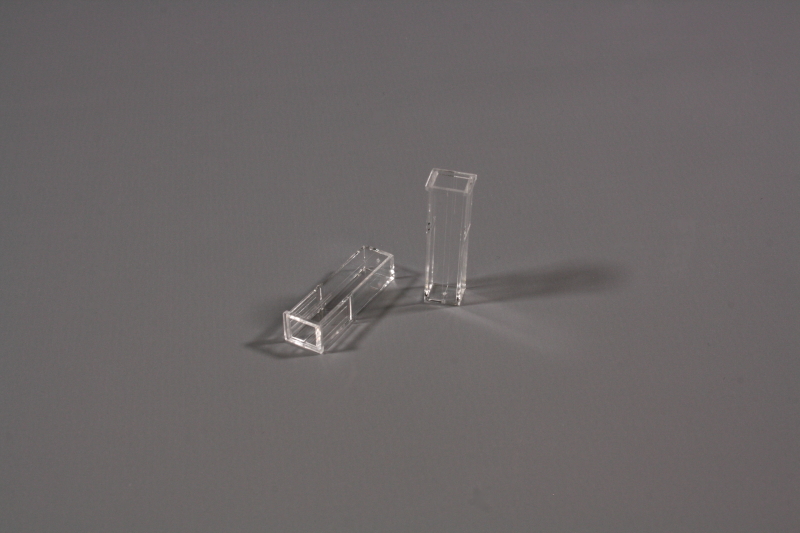

Reaction cuvettes with multicycle washing station

Barcode reader

Internal sample barcode reader

Languages

English, French, Spanish
Additional languages can be added

User interface

External PC, touch screen recommended

LIS

ASTM Bi-directional , ethernet of external PC, polling mode on LAN

Physical dimensions (W x D x H)

Instrument without any components: 69 x 76 x 52 cm
Space required for routine use: 150 x 90 x 100 cm Weight: 51 kg

Environmental

Operating: temperature 16...30 °C, humidity 80 % rel. non condensing
Transport: temperature 0...50°C, humidity 85% rel. non condensing
